Zhengzhou Jiarun Instrument & Equipment Co., Ltd.
Stainless Steel
Reactor
The BSF series stainless steel reactor features a 316L stainless steel inner tank with a reliable sealing, agitation and process-control structure for laboratory and pilot-scale reaction applications.

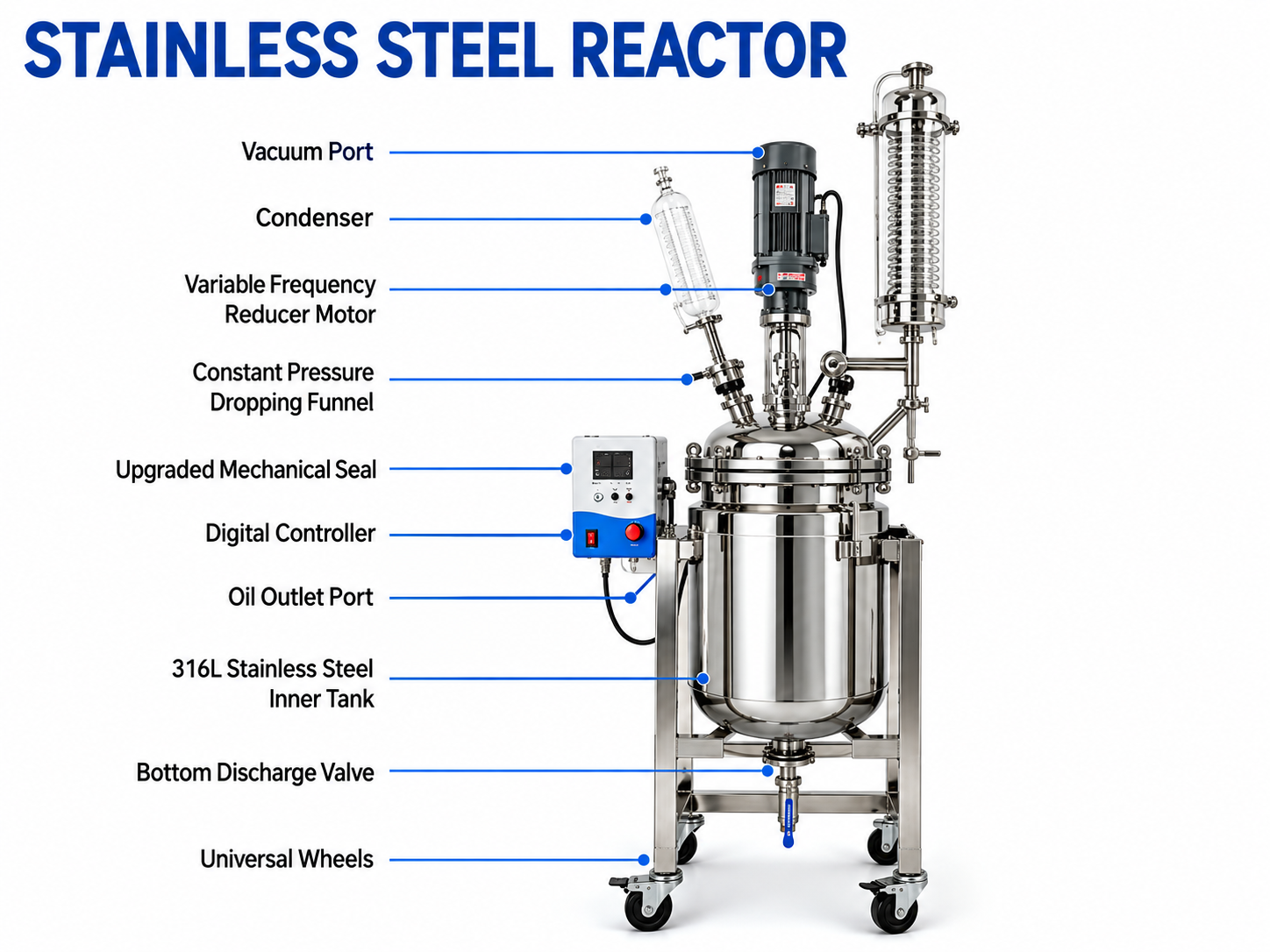

Main Structure and Components
The BSF series integrates a stainless steel reaction vessel, agitation system, condenser, mechanical sealing system and multiple process connections into one laboratory reaction unit.
Key Features
Technical Parameters
Specifications are divided into two capacity groups for easier model comparison.
| Specification |
BSF-2L Economy |
BSF-3L Basic |
BSF-5L Standard |
BSF-10L Professional |
|---|---|---|---|---|
| Motor Power (W) | 120 | 120 | 120 | 200 |
| Overall Dimensions (mm) | 450 × 450 × 1410 | 450 × 450 × 1450 | 450 × 450 × 1500 | 480 × 480 × 1560 |
| Lid Ports | 7 ports | |||
| Temperature Measurement Port | 50.5 tri-clamp / Φ8 temperature probe tube | |||
| Addition Port | 50.5 tri-clamp / 500ml constant pressure dropping funnel | |||
| Condenser Port | 50.5 tri-clamp / Vertical spiral condenser port | |||
| Return Port | 50.5 tri-clamp / Φ8 curved return port | |||
| Sight Glass (Φ) | 32 | 51 | ||
| Safety Relief Valve | Safety relief valve (set pressure 0.1 MPa) | |||
| Working Temperature (°C) | -120 ~ 260 | |||
| Stainless Steel Thickness (mm) | 3 | |||
| Discharge Valve Diameter (Φ) | 20 | 35 | ||
| Specification |
BSF-20L Economy |
BSF-30L Basic |
BSF-50L Standard |
BSF-100L Professional |
|---|---|---|---|---|
| Motor Power (W) | 200 | 120 | 200 (1:3) | 200 (1:3) |
| Overall Dimensions (mm) | 500 × 500 × 1850 | 530 × 530 × 1900 | 580 × 580 × 2100 | 1050 × 690 × 2350 |
| Lid Ports | 8 ports | |||
| Temperature Measurement Port | 50.5 tri-clamp / Φ10 temperature probe tube | 50.5 tri-clamp / Φ12 temperature probe tube | ||
| Addition Port | 50.5 tri-clamp / 1000ml constant pressure dropping funnel | 50.5 tri-clamp / 2000ml constant pressure dropping funnel | ||
| Condenser Port | 50.5 tri-clamp / Vertical spiral condenser port | |||
| Return Port | 50.5 tri-clamp / Φ38 | |||
| Sight Glass (Φ) | 51 | 89 | ||
| Safety Relief Valve | Safety relief valve (set pressure 0.1 MPa) | |||
| Working Temperature (°C) | -120 ~ 260 | |||
| Stainless Steel Thickness (mm) | 4 | |||
| Discharge Valve Diameter (Φ) | 35 | |||
Build a Complete Reaction System
Combine the stainless steel reactor with a heating & cooling circulator and vacuum system to build a complete laboratory or pilot-scale reaction solution.
BSF Series Reaction and mixing
Circulator Temperature control
System Reduced-pressure operation
