CCA-420
Low Temperature Circulating Chiller
CCA-420 low temperature circulating chiller is designed for laboratory cooling applications and is suitable for 1–5L rotary evaporator condenser systems.

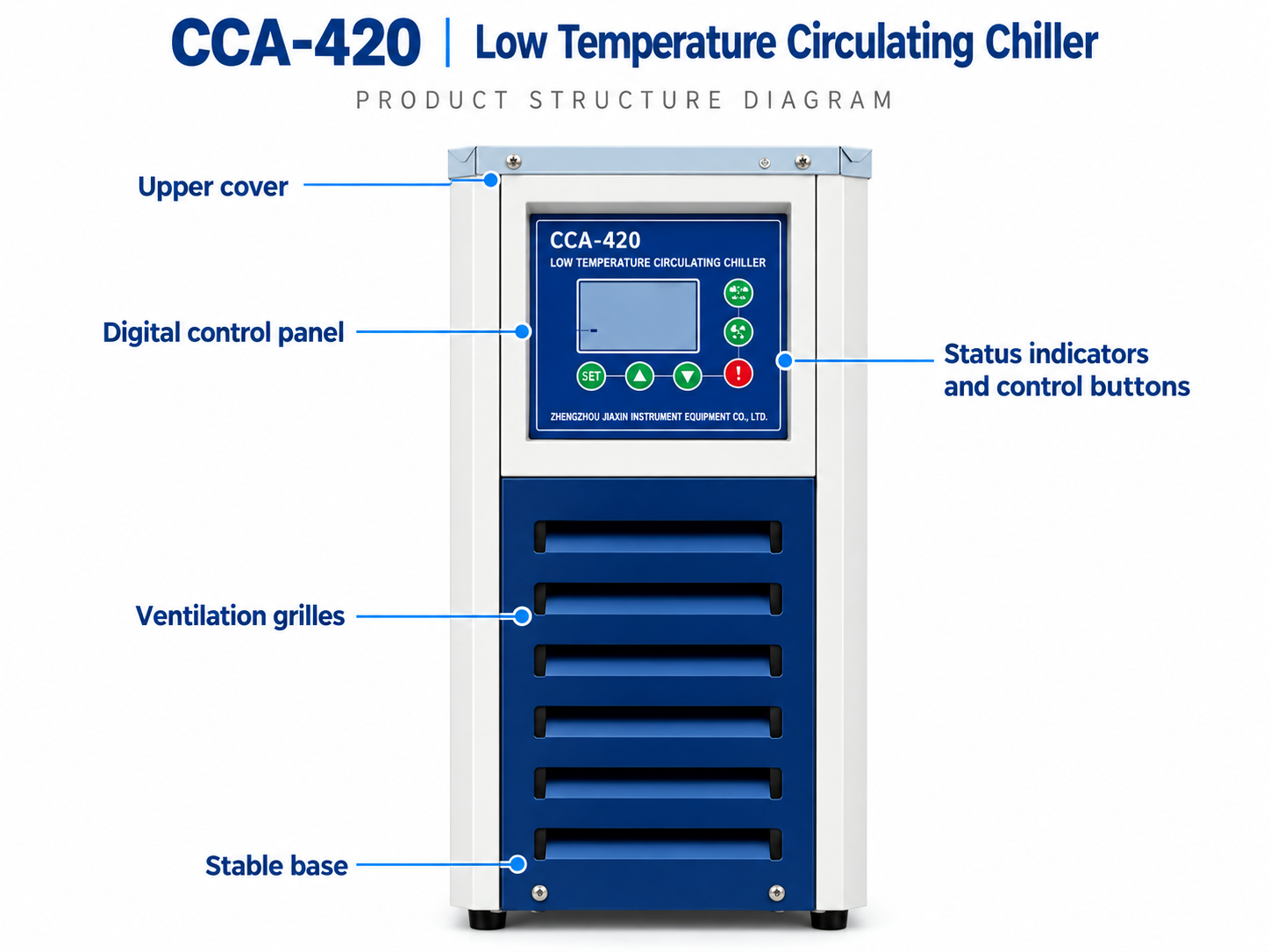

Main Structure and Components
CCA-420 adopts a compact laboratory design with a digital control panel, front ventilation structure and stable cabinet construction for daily operation.
Key Features
Technical Parameters
Main technical specifications of the CCA-420 low temperature circulating chiller.
| Item | CCA-420 |
|---|---|
| Compatible Equipment | 1–5L |
| Tank Capacity | 4.5L |
| No-load Lowest Temperature | -20°C |
| Compressor Power | 750 W |
| Refrigeration Capacity | 1248–319 W |
| Temperature Control Accuracy | ±0.1°C |
| Temperature Sensor | PT100 |
| Pump Head (Max.) | 4.3 m |
| Flow Rate (Max.) | 32 L/min |
| Recommended Ambient Temperature | 5–35°C |
| Power Supply | According to customer configuration |
| Overall Dimensions | 520 × 380 × (770 + support height 400) mm |
| Net Weight | 48 kg |
Designed for 1–5L Rotary Evaporators
CCA-420 provides circulating cooling for the condenser of small laboratory rotary evaporators and helps maintain stable condensation during evaporation processes.
Complete Laboratory Solution
Combine CCA-420 with a rotary evaporator and circulating water vacuum pump to build a complete laboratory evaporation system.
Rotary Evaporator Evaporation and concentration
Low Temperature Chiller Cooling for condenser
Vacuum Pump Vacuum for evaporation
Need More Information About CCA-420?
Contact us for detailed specifications, pricing and suitable cooling configurations for your laboratory equipment.
