Glass Reactor
The SF212 series glass reactor combines a high borosilicate glass vessel with an agitation, condensation and sealing system for laboratory synthesis, distillation, concentration and other reaction processes.
High Borosilicate Glass
Glass reaction vessel
Stable Agitation
Four-blade impeller
10L–50L Series
Multiple model configurations

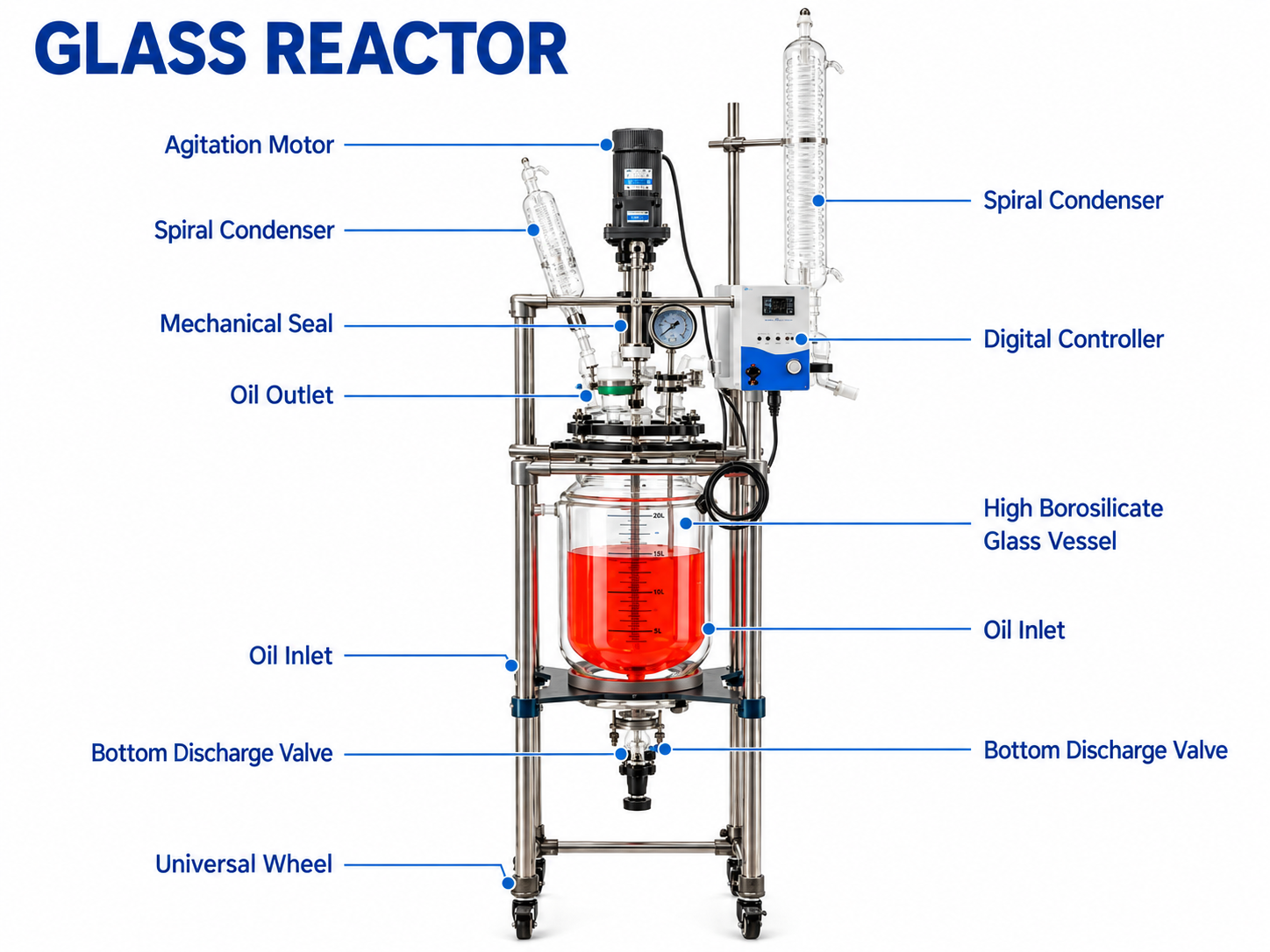

Product Structure
Main Structure and Components
The SF212 glass reactor integrates a glass reaction vessel, agitation system, condenser, sealing system and multiple connection ports into a complete laboratory reaction unit.
Key Features
1
High Borosilicate Glass Vessel
Transparent reaction vessel for process observation
2
Reliable Agitation System
Four-blade impeller for reaction mixing
3
Spiral Condenser
Integrated condensation structure
4
Mechanical Seal
Sealing structure for laboratory operation
5
Bottom Discharge Valve
Convenient material discharge
6
Multiple Connection Ports
Ports for addition, condensation and measurement
Technical Specifications
Technical Parameters
Compare technical specifications across the SF212 glass reactor series.
| Specification |
SF212-10L Economy |
SF212-20L Basic |
SF212-30L Nautical |
SF212-50L Professional |
|---|---|---|---|---|
| Motor Power (W) | 120 / Explosion-proof 180 (optional) | |||
| Overall Dimensions (mm) | 500 × 500 × 2100 | 500 × 500 × 2200 | 540 × 540 × 2300 | 540 × 540 × 2520 |
| Glass Vessel Capacity (L) | ≈3.8 | ≈5 | ≈8 | ≈15 |
| Lid Ports | Six ports | |||
| Temperature Measurement Port | Φ35 / Digital thermometer | |||
| Addition Port | #40 / Constant pressure addition funnel 1000 ml | |||
| Condenser Port | #40 | |||
| Return Port | Φ50 Spherical joint / Curved return tube 500 ml | |||
| Material / Liquid Discharge Port | #34 Glass valve | |||
| Agitation Port | Φ60 Four-blade impeller | |||
| Pressure Gauge | All-in-one pressure gauge | |||
Complete Reaction System
Build a Complete Laboratory Reaction System
Combine the glass reactor with a heating & cooling circulator and vacuum system to build a complete laboratory reaction solution.
SF212 Series Reaction and mixing
+
Circulator Temperature control
+
System Reduced pressure operation
