Zhengzhou Jiarun Instrument & Equipment Co., Ltd.

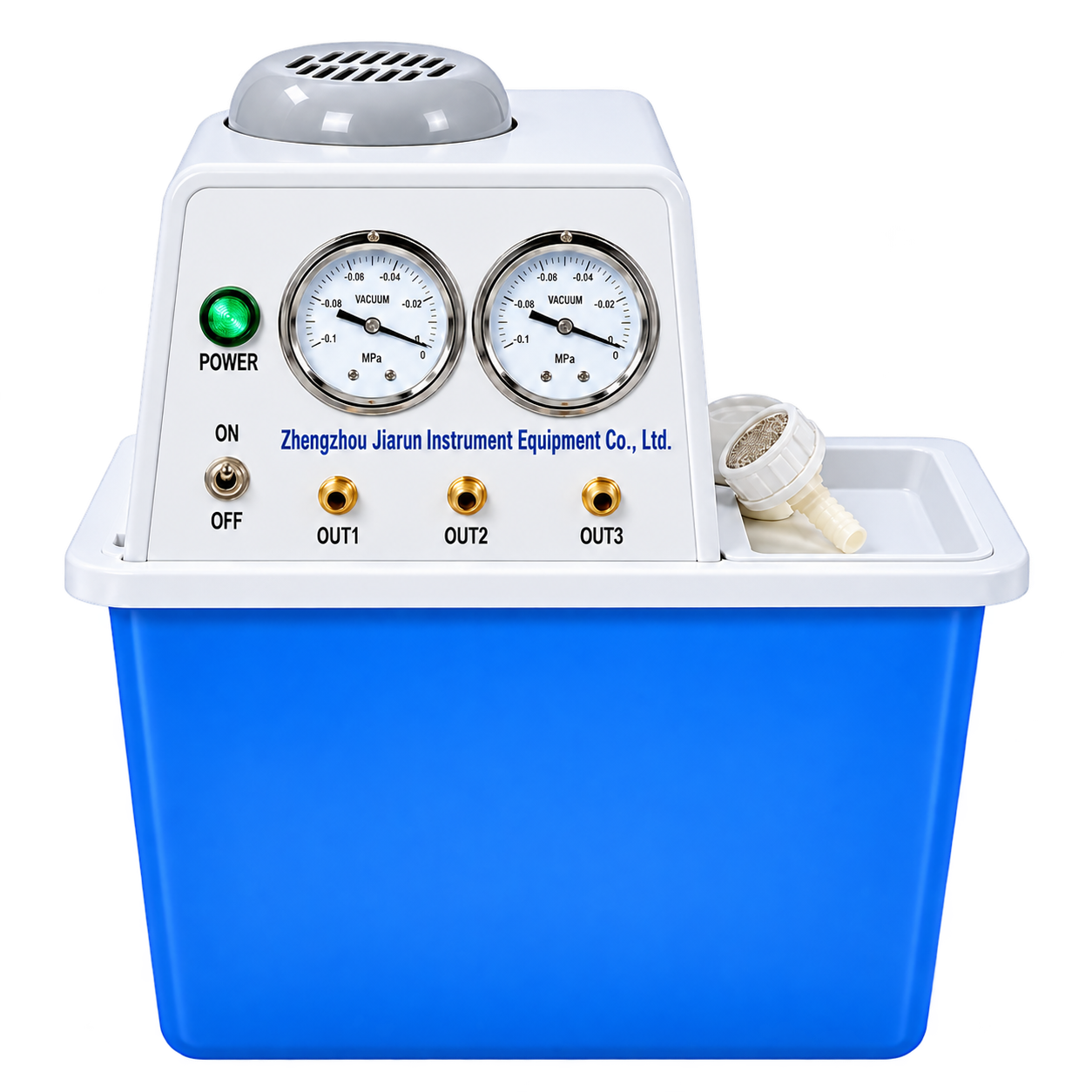

Water Circulating
Vacuum Pump
Water circulating vacuum pump for rotary evaporation, vacuum filtration, drying and other laboratory vacuum applications. Multiple material and functional configurations are available.

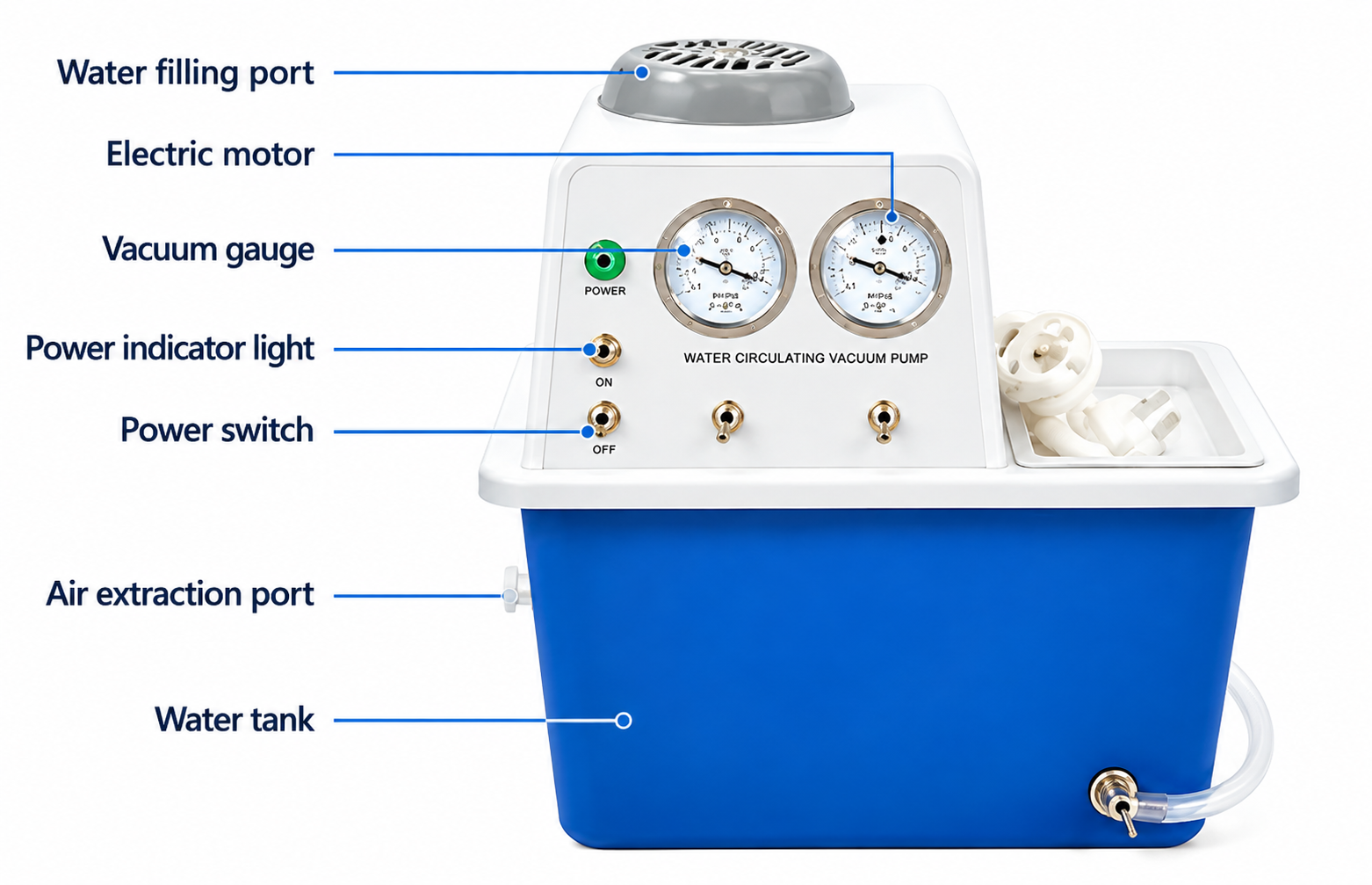

Main Structure and Components
The water circulating vacuum pump integrates the motor, vacuum gauges, extraction ports and circulating water tank into a compact laboratory vacuum system.
Key Features
Multiple Configurations for Different Needs
SHZ series water circulating vacuum pumps are available in different materials and functional configurations.
Corrosion-resistant
Teflon
& Two Valves
Retention Valve
Extractor
Technical Parameters
Technical configuration varies according to model and material selection.
| Specification |
SHZ-D(III) ABS |
SHZ-D(III) PTFE |
SHZ-D(III) Stainless Steel |
SHZ-D(III) Copper Heads |
SHZ-S(II) ABS |
SHZ-95 Five-Valve |
|---|---|---|---|---|---|---|
| Water Flow Rate | 60 L/min | 90 L/min | 80 L/min | |||
| Lift | 8 m | 12 m | ||||
| Ultimate Vacuum | 0.098 MPa | |||||
| Suction Flow Rate / Head | 10 L/min | |||||
| Water Tank Capacity | 15 L | 35 L | ||||
| Power Supply | AC 220 V / 50 Hz | |||||
| Materials in Contact with Liquid / Vacuum | Corrosion-resistant PP | PTFE | Corrosion-resistant PP | Copper | Corrosion-resistant PP | Copper |
| Pump Body Material | PVC | PVC | 304 Stainless Steel | PVC | PVC | PVC |
| Overall Dimensions | 400 × 280 × 420 mm | 440 × 340 × 840 mm | ||||
Build a Complete Evaporation System

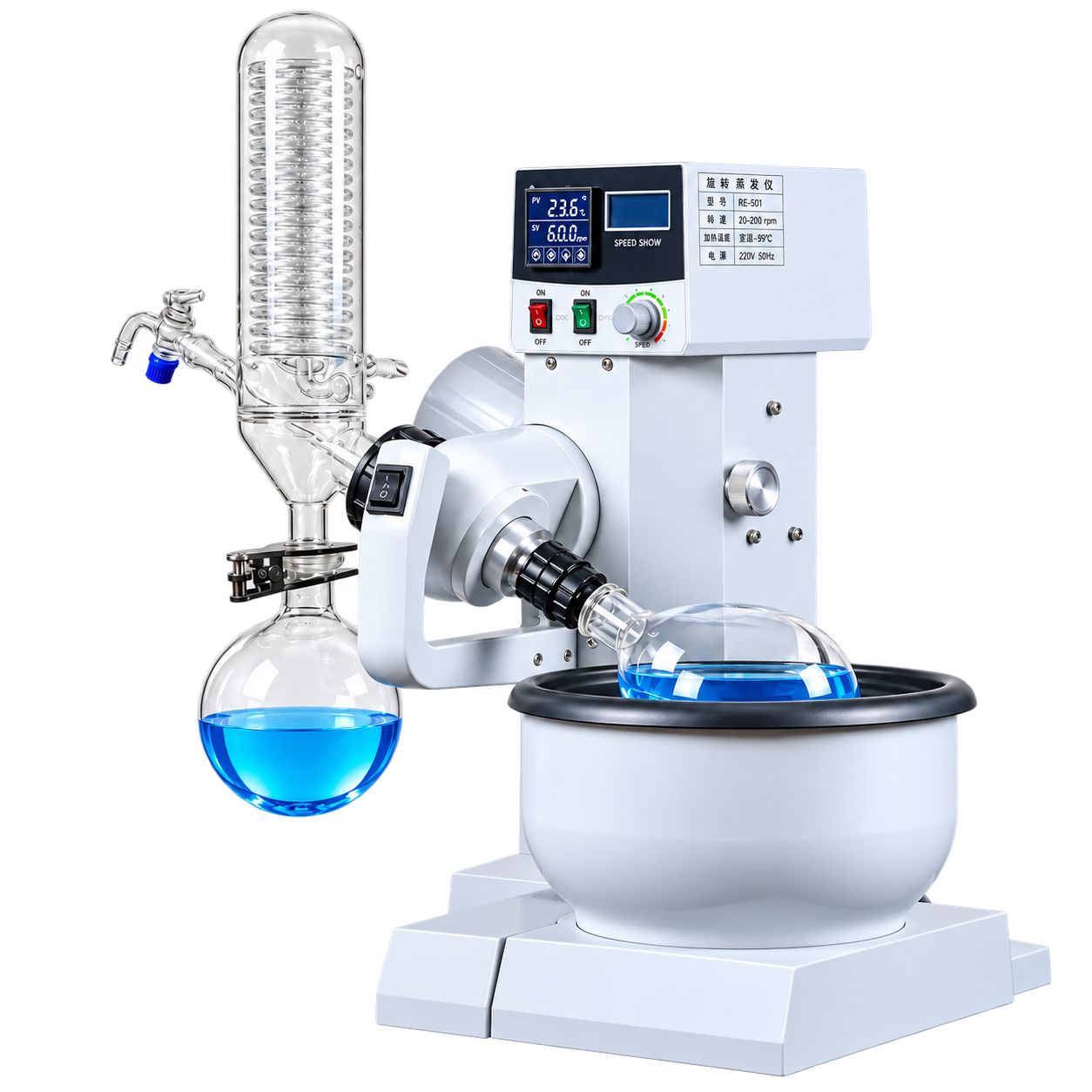

Combine the vacuum pump with a rotary evaporator and low temperature circulating chiller to build a complete laboratory evaporation system.

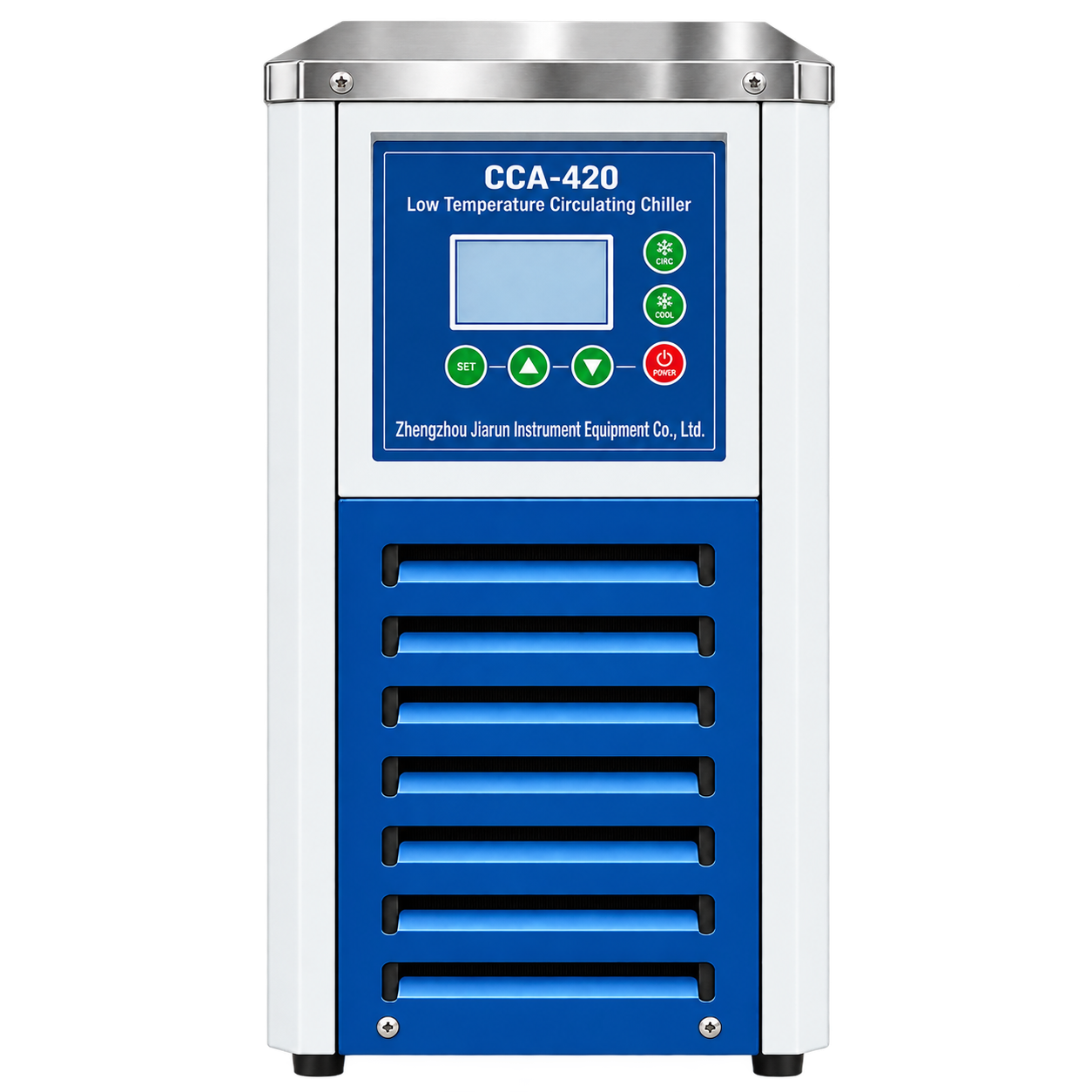

Circulating Chiller Cooling for condenser
Vacuum Pump Vacuum supply
Need the Right Vacuum Pump?
Contact us for model selection, specifications, pricing and suitable laboratory vacuum configurations.
